The infrastructure of our company specializing in the manufacturing of industrial rolls is meticulously designed to support both high-volume production and precision engineering. Central to this infrastructure is a robust network of advanced machinery, including rolling mills, cutting machines, and quality control systems, all strategically integrated to streamline operations. The facility typically features spacious production floors equipped with automated conveyor systems that facilitate the efficient movement of materials and finished products. Supporting this are dedicated areas for raw material storage, maintenance workshops, and quality testing labs. An effective infrastructure also encompasses logistics and supply chain management systems to ensure timely distribution and customer satisfaction. This comprehensive setup not only enhances productivity but also ensures that the final products meet the stringent standards required by various industrial applications.
- Our choice of machinery relates directly to the stages of production and the quality control process.
- We have a full-fledged Laboratory comprising all the analytical equipments required to determine the right quality & composition of raw materials.All furnace additions are duly analysed and pre-treated here.
- At this stage, various tests are carefully carried out to determine if the roll is zero-defect and qualifies for further processing.Hardness Testing A series of Metallographic and Mechanical tests monitor the structural homogeneity and ensure that rolls are free from cracks, blow holes, gas holes, etc. Hardness is measured using the 'Shore', 'Vickers' & 'Dynamic' Hardness Testers.
- Special moulding techniques have been developed to improve upon the roll quality for chill as well as the other rolls. The high quality scrap (with controlled sulphur & phosphorous and other raw material), once tested, move to the latest designed Induction Melting Furnace for clean and homogeneous melt of proper composition. Proper temperature control during the course of the heat and at the time of pouring of the roll is exercised with the help of Immersion and Optical Pyrometers. Bath sample of each melt is analysed for composition and determination through the latest model of German Spectrometer. Every possible precaution is taken to minimise hydrogen. The process guarantees uniform structure & mechanical properties over the particular zone.
- Meanwhile all the steel rolls require heat treatment. The Hardening and Tempering furnaces are provided with Temperature Control Microprocessors and the required rolls are subjected to various heat treatment cycles. Stress Relieving of Special S.G. Rolls is also done here
- Metallurgical tests in respect of grain size and microstructure are carried out after heat treatment and eventually the Ultrasonic testing is done, where required, to ensure the overall internal soundness of the roll.Dynamic Balancing Hollow rolls are dynamically balanced at different RPM to ensure their friction free movement. Finally the rolls, as required, are tested by means of Non-Destructive testing methods like ultrasonic, magnetic particle inspection and dye-penetrant tests and the best possible quality of roll without surface and internal defects is ensured.
- For large or critical rolls, samples are removed from the rolls to carry out Tensile, Impact and Microstructure tests to ensure optimum properties in service.
- Roll material and the groove design are major factors affecting rolling performance and roll life. It is after these series of tests and quality control process that we finally present our rolls for the ultimate inspection, approval and delivery. Rolls are always despatched with the identity number engraved on the drive-end wobbler face.

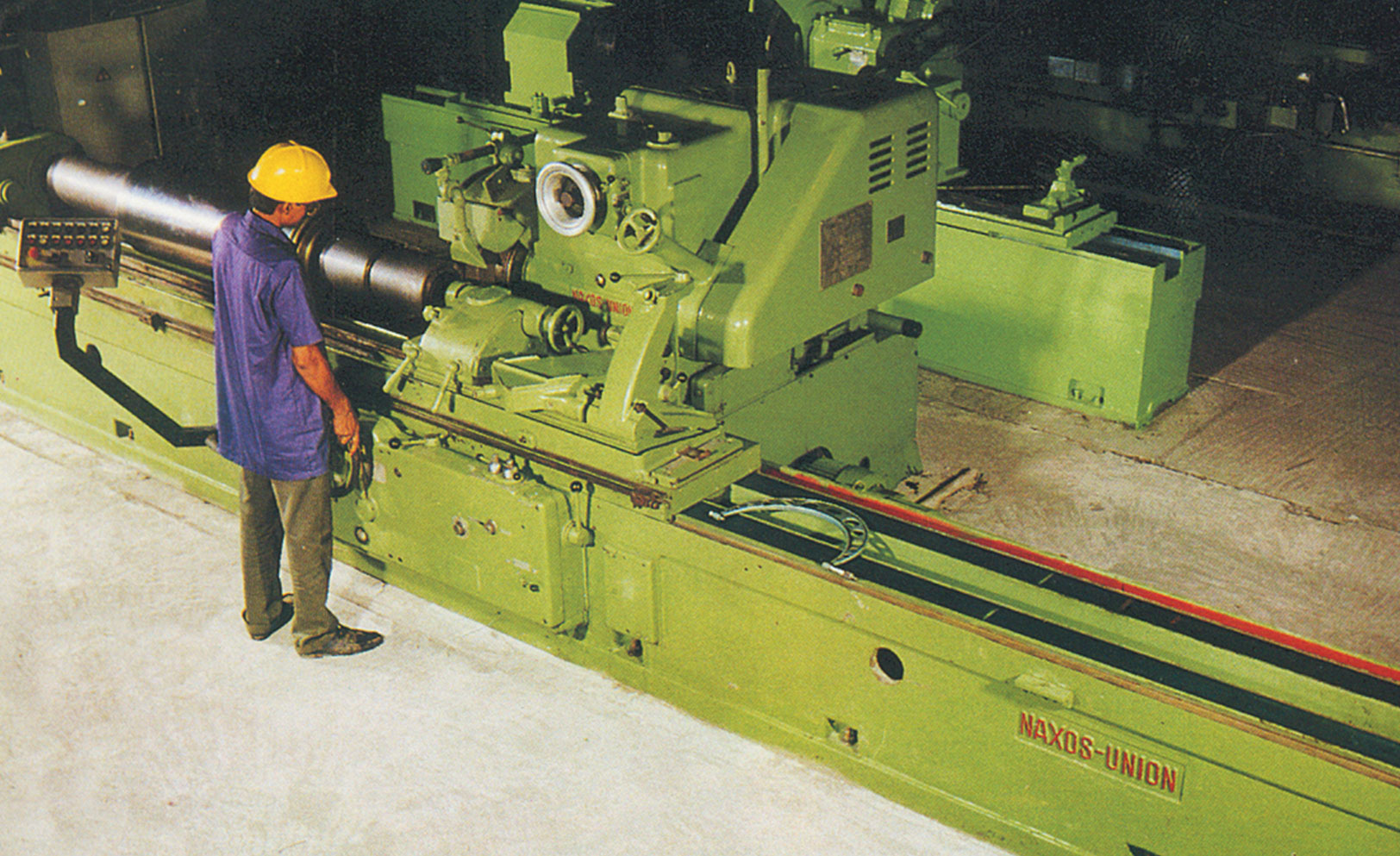

- The rolls meeting all the stringent tests to our complete satisfaction are then sent to the rest of the machine-shop, comprising High Precision Lathes, Radial Drill Machines, Boring Machines, Wobbler Milling & Grinding Machines, etc.
